Product Description

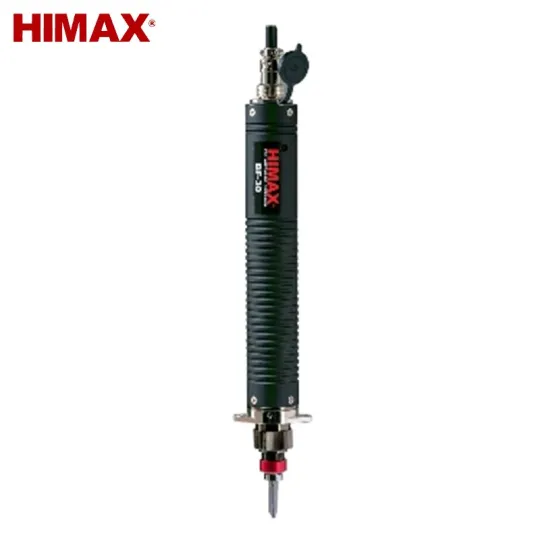

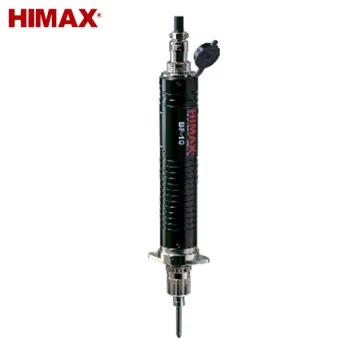

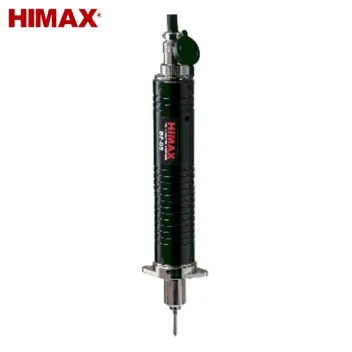

HIMAX devotes to develop a brand new series of brushless electric screwdrivers for the purpose of automatic production.
The HIMAX BF series is able to match up various of automatic machineries and is easy to install, stable in operation with high accuracy and provided with diversified extension functions.
Features
● Metal Body Frame, Strong and Durable
All new design with whole metal body frame, compatible with various auto machine fixture.
● Broad Torque Output Range
Suitable for various assembly tasks.
● Metal Fixing Base for Automatic Machine
Meet general automatic machine specification
Easy to install and use.
● Reverse Operation Function
HIMAX BF Series compatible with BT-6AT power controller to achieve reverse operation.
● Rotating Speed Adjustable
RPM can be stepless adjusted from 100~1000RPM.
Specification
| Model | BF-02 | BF-03 | BF-05 | BF-10 | BF-20 | BF-30 | |
| Torque Range | Kgf-cm | 0.20~1.50 | 0.30~3.00 | 0.50~5.00 | 2.00~12.00 | 3.00~18.00 | 5.00~30.00 |
| No Load (r.p.m.)±5% | 100~1000 | 100~1000 | 100~1000 | 100~1000 | 100~1000 | 100~1000 | |
| Weight (g) | 420 | 420 | 420 | 520 | 970 | 970 | |
| Length (mm) | 212.5 | 212.5 | 212.5 | 227.5 | 294 | 294 | |
| Applicable Screw Range(mm) | 1.0~2.6 | 1.0~2.6 | 1.0~2.6 | 2.0~3.0 | 2.0~3.0 | 2.0~5.0 | |
| Applicable Screw Bits | H4 | H4 | H4 | H5/HEX | H5/HEX | H5/HEX | |
| Power Supply | BT-6AT | BT-6AT | BT-6AT | BT-6AT | BT-6AT | BT-6AT | |
